HARD ENDURO
slopestyle
trail
enduro
down-country
steelisreal2

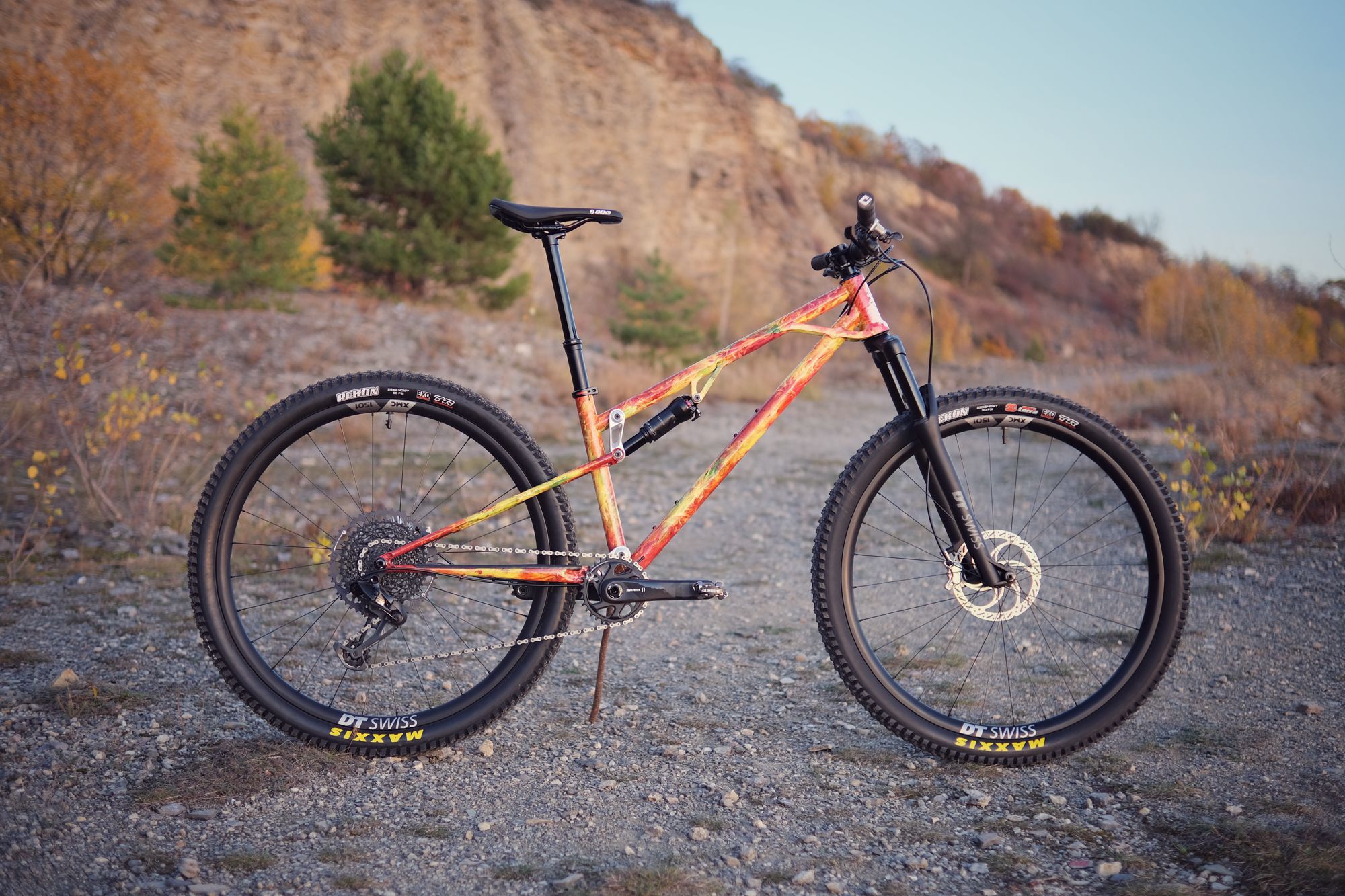

EGGS, COFFEE, BIKE RIDING, BEERS, SLEEPING...THAT'S RUTINA! RUTINA OFFERS COMFORT FOR LONG DAYs ON the BIKE WITH EXCELLENT PEDAL EFFICIENcy!

COMFORT ON LONG TRIPS
REAR TRAVEL 115mm
62.000 CZK / 2.500 EUR
SELECT GEOMETRY
29
32
I WANT TO SEE CHARTS AND NUMBERS!
SELECT FRAME SIZE
S
M
L
XL
XXL
HOW TO CHOOSE THE SIZE CORRECTLY
order form
WRITE FOR MORE INFORMATION!
tech spec
frame
rear travel 115mm, CrMo and Columbus steel tubes
Recommended fork travel
100-130mm
Shock
190x45mm (rear travel 115 mm) 190x40mm (rear travel 105 mm)
Front bushing
22,2x8 mm
Headset
semi-integrated ZS44/ZS56
Seatpost
30,9 mm internal routing
Seatpost clamp
34,9 mm
Bottom bracket
Threaded BSA, width 73mm
chainring
direct mount, max 36z

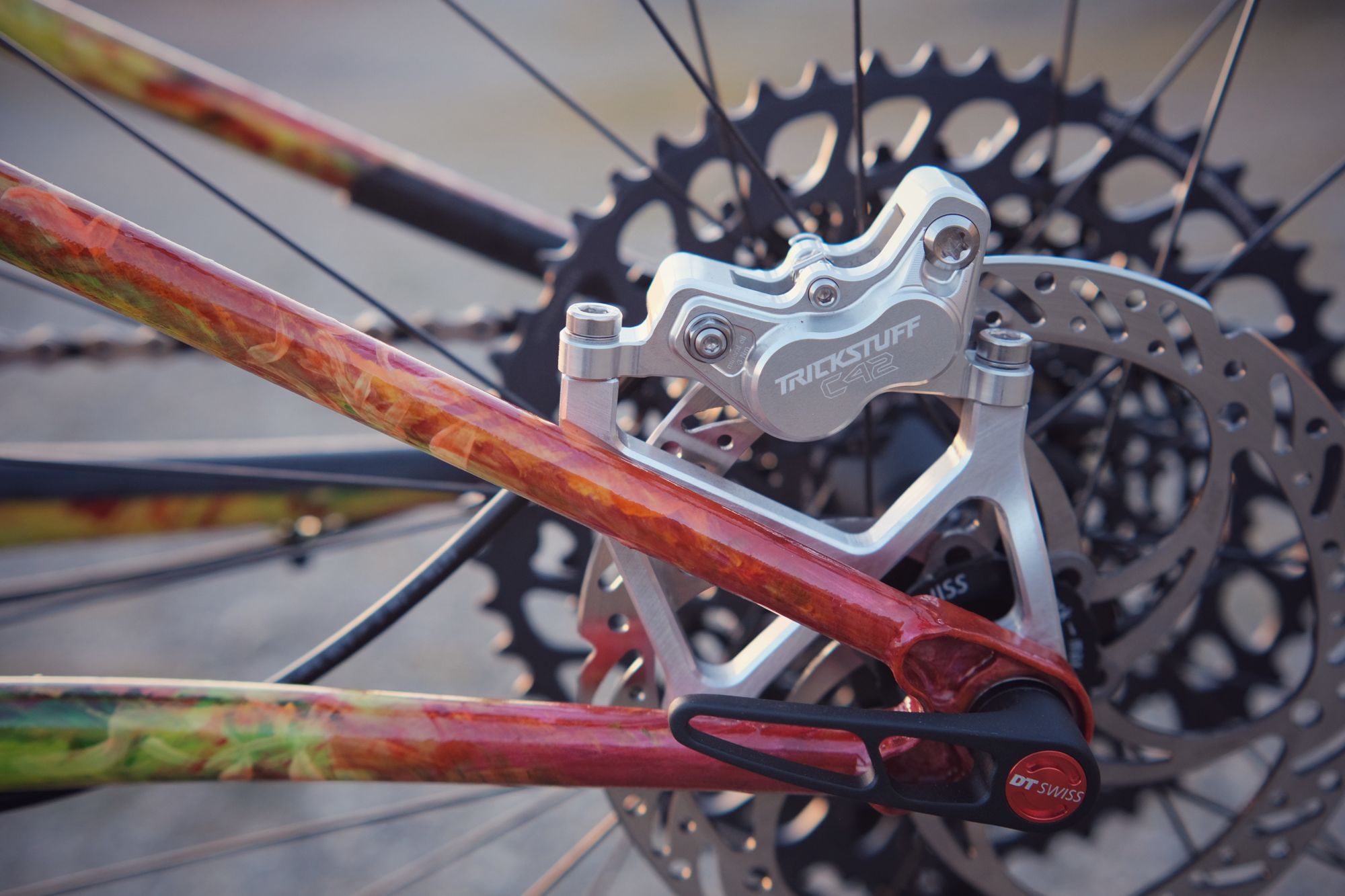

Brake mount
PM 160 mm
Brake rotor
max 180 mm
Rear hub
boost 148x12 mm
Max tyre width
2,5”
Optional elements

INTERNAL OR EXTERNAL CABLE ROUTING (the frame is supplied as standard with an internal cable routing, which is made of continuous stainless steel tubes)

ADDITIONAL BOTTLE HOLDER (extra charge)

ORDERING PROCESS

EACH FRAME IS MADE TO ORDER. YOU WILL BE NOTIFIED BY EMAIL OF THE PROGRESS OF THE BUILD ANDTHE COMPLETION DATE. AFTER PLACING YOUR ORDER, YOU WILL RECEIVE AN ADVANCE PAYMENT REQUEST OF 50% OF THE FRAME PRICE, WHICH IS REQUIRED TO START THEMANUFACTURING PROCESS. THE REMAINING AMOUNT INCLUDING SHIPPING IS TO BE PAID UP ON COMPLETION OF THE FRAME.

INCLUDED IN THE PRICE

The frame with SRAM's Universal Derailleur Hanger, DT Swiss rear axle and spare chainguide.

NOT INCLUDED IN THE PRICE

SHIPPING AND CUSTOM FEES. PLEASE CHECK WITHYOUR COUNTRY'S CUSTOMS REGULATIONS.

DELIVERY PERIOD

THE DELIVERY DATE IS APPROXIMATELY 2-3MONTHS FROM RECEIVING THE DEPOSIT. YOU WILL BE NOTIFIED OF ANY DELAYS. THEMANUFACTURING TIME DEPENDS ON THE NUMBER OF ORDERS IN THE QUEUE.

SHIPPING

europe:
GERMANY, austria, france, italy, belgium, switzerland, sweden, norway  Etc 50 eur

world:
usa, canada, brasil, chille australia, japan etc 100 eur

for other countries, check price on bike@zoceli.cz

WARRANTY

I STAND BEHIND MY FRAMES AND I WANTEVERYONE TO ENJOY THEIR ZOCELI FRAME FOR AS LONG AS POSSIBLE, WHICH IS WHY IOFFER A LIFETIME WARRANTY.THE LIFETIME WARRANTY COVERS ALLMANUFACTURED AND WELDED PARTS OF THE FRAME, SUCH AS THE FRONT AND REARTRIANGLES AND THE ARM ROCKERS.A LIMITED 2-YEAR WARRANTY APPLIES TOTHE PAINTWORK, REAR AXLE AND JOINING MATERIAL.

MORE ABOUT WARRANTY

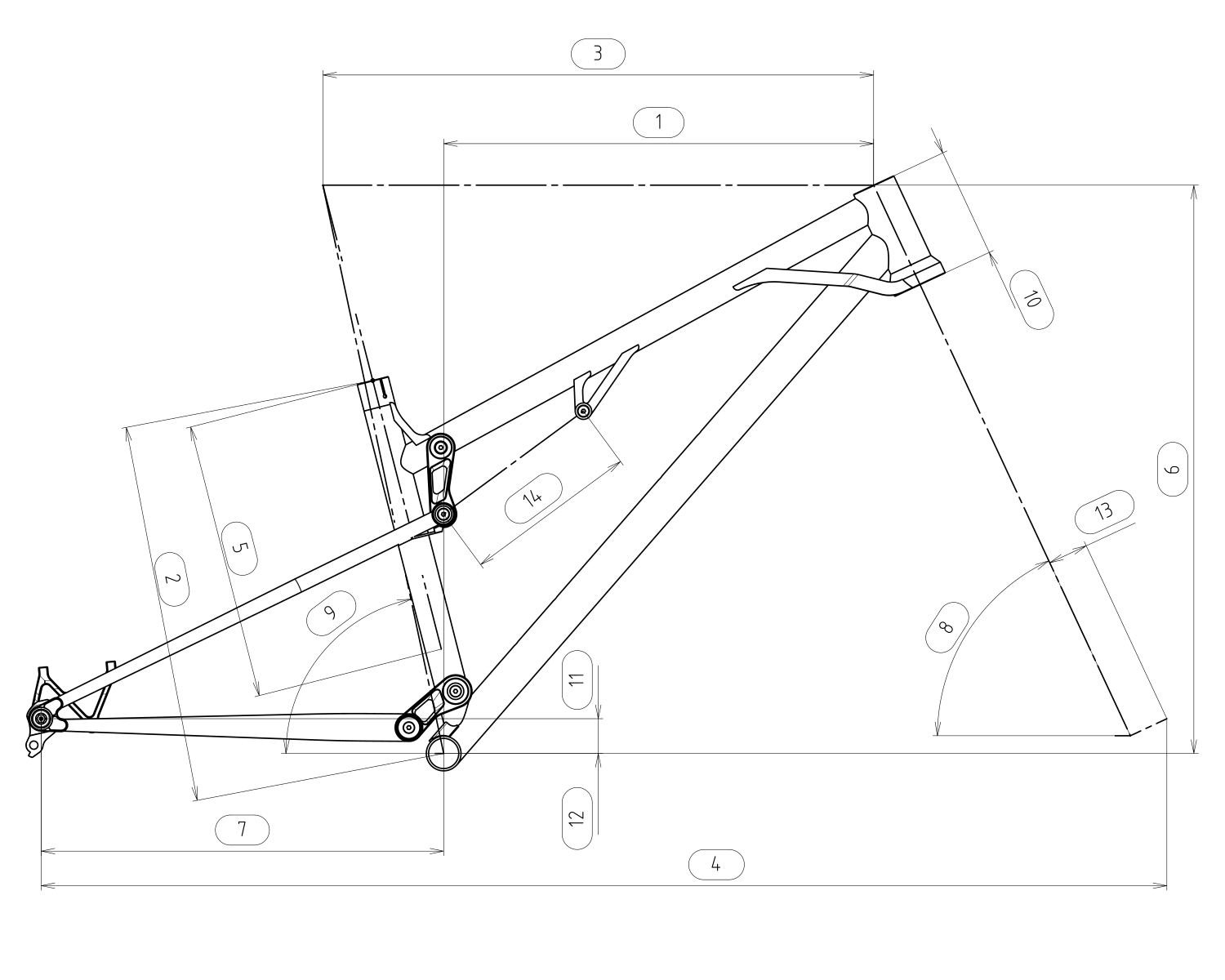

SELECT GEOMETRY
29
32
S
(155-165cm)
M
(165-175cm)
L
(175-185cm)
XL
(185-195cm)
XXL
(195-205cm)

(LENGHT in mm, axle to crown 541mm-travel 120mm)
1
REACH
430
450
470
490
510
2
Seat tube length
370
390
415
440
465
3
Top tube length
562
582
602
622
642
4
Wheelbase
1201
1221
1241
1261
1281
5
Seatpost max insert
270
295
320
345
370
6
Stack
621
7
Chainstay
440
8
Head tube angle
65°
9
Seat tube angle
78°
10
Head tube length
120
11
BB Drop
38
12
BB Height
335
13
Fork offset
44
14
SHOCK
190x45 - rear travel 115 mm
190x40 - rear travel 105 mm
15
Weight
(without shock and rear axle)
±3100g

features

cables

Internal cable routing for the seatpost, shifter and brake that every technician dreams of. Small stainless steel tubes ensure that the Bowden cable or hose always find their way into the right hole.

Proven and widelyavailable SRAM UDH.

progressive suspension

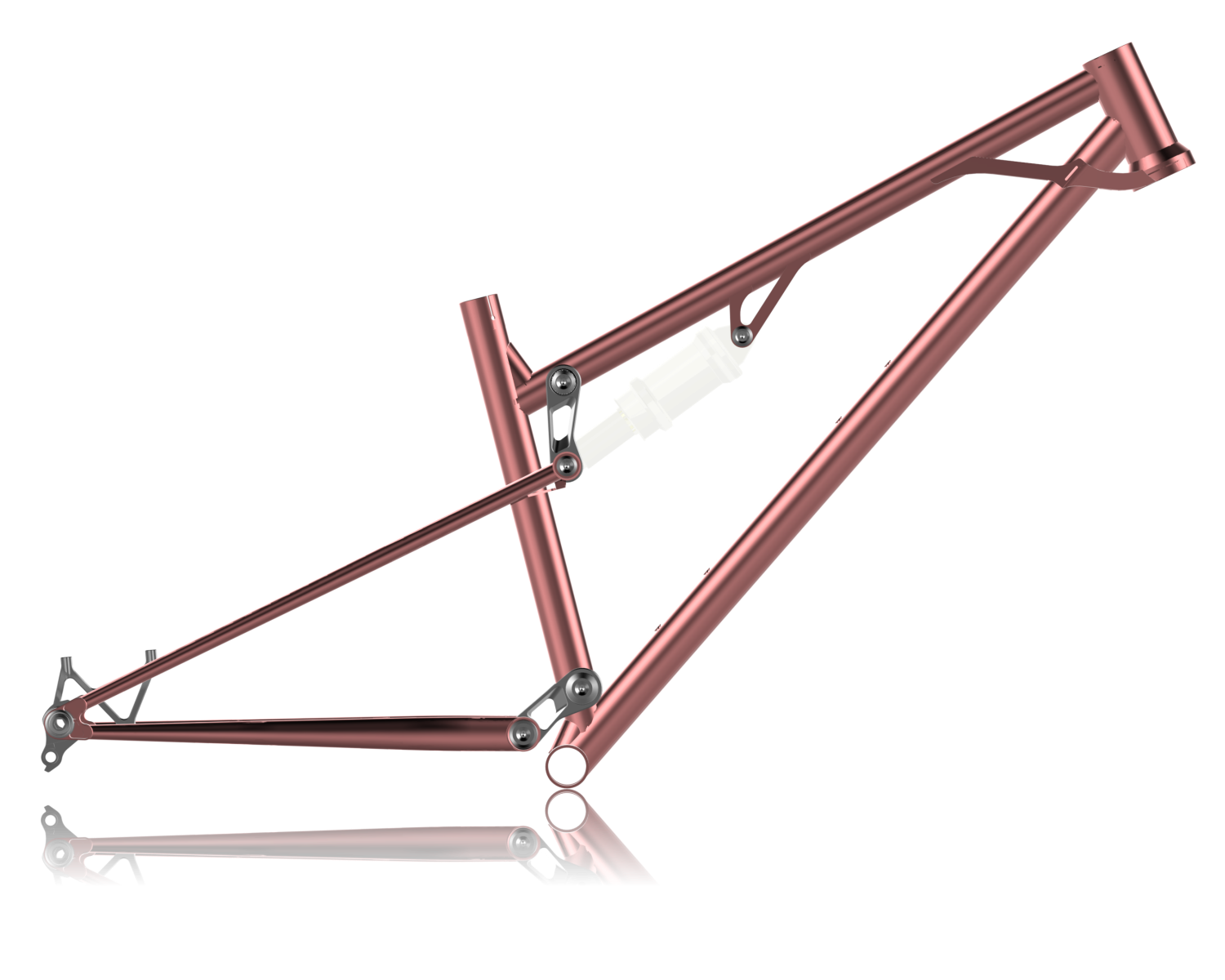

two positions of chainstay for using 29" or 27.5" wheel

lowrider

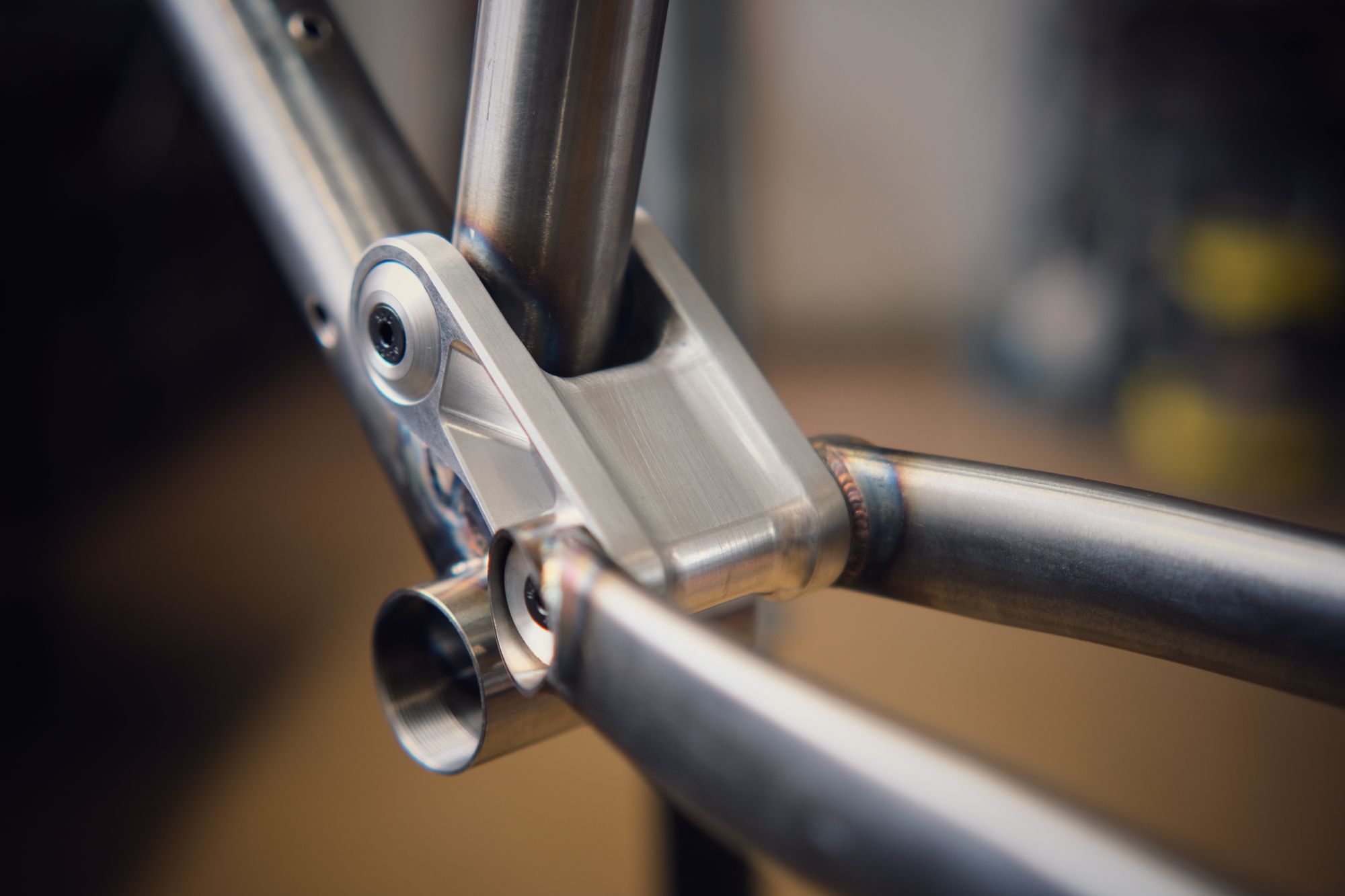

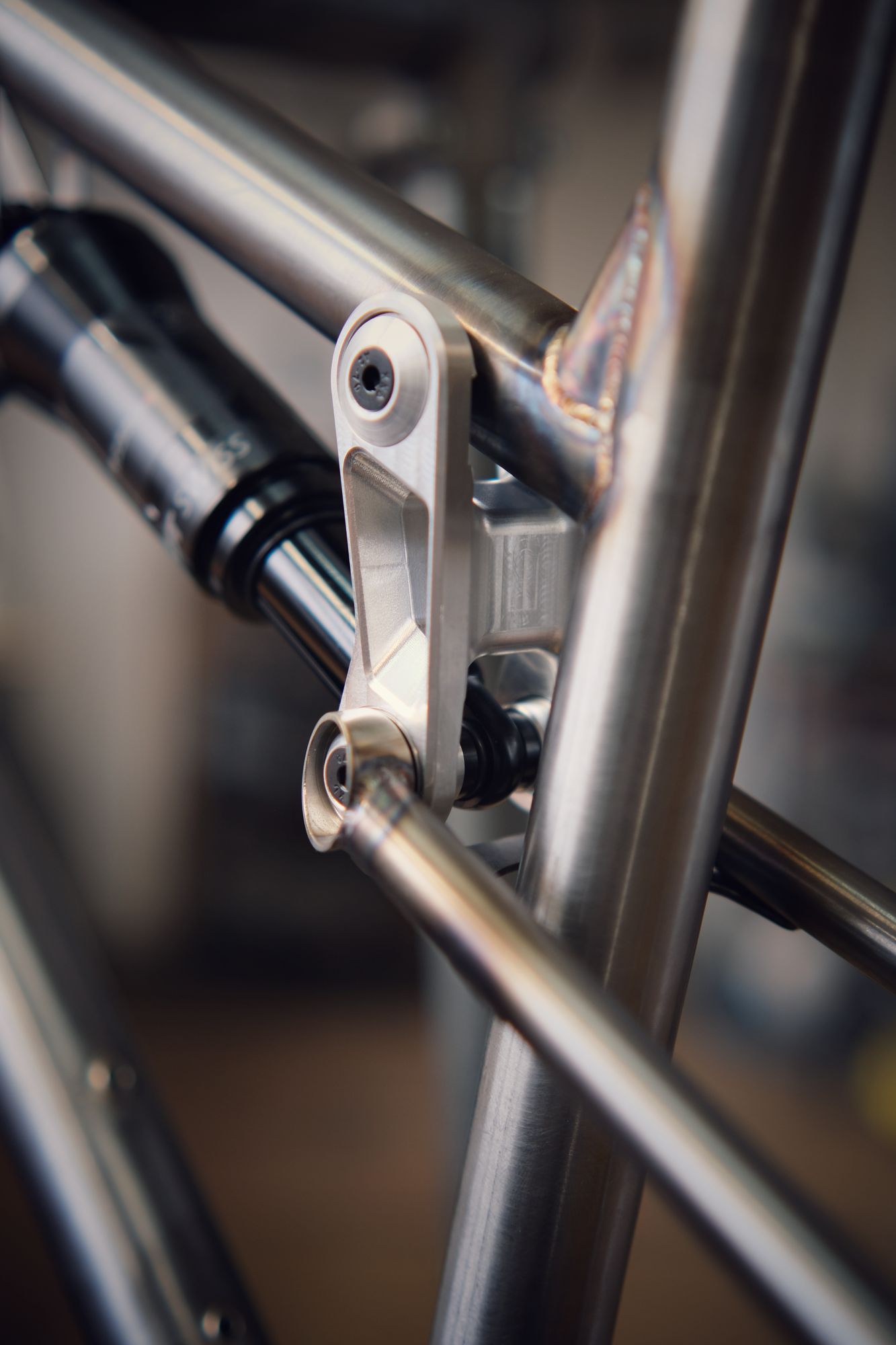

looks like a rocker arm but this CNC machined part is part of chainstay and rear end

chain

flexible rear end substitute pivot

14t narrow wide Pinion for power transfer to the rear wheel

14t narrow wide Pinion for power transfer to the rear wheel

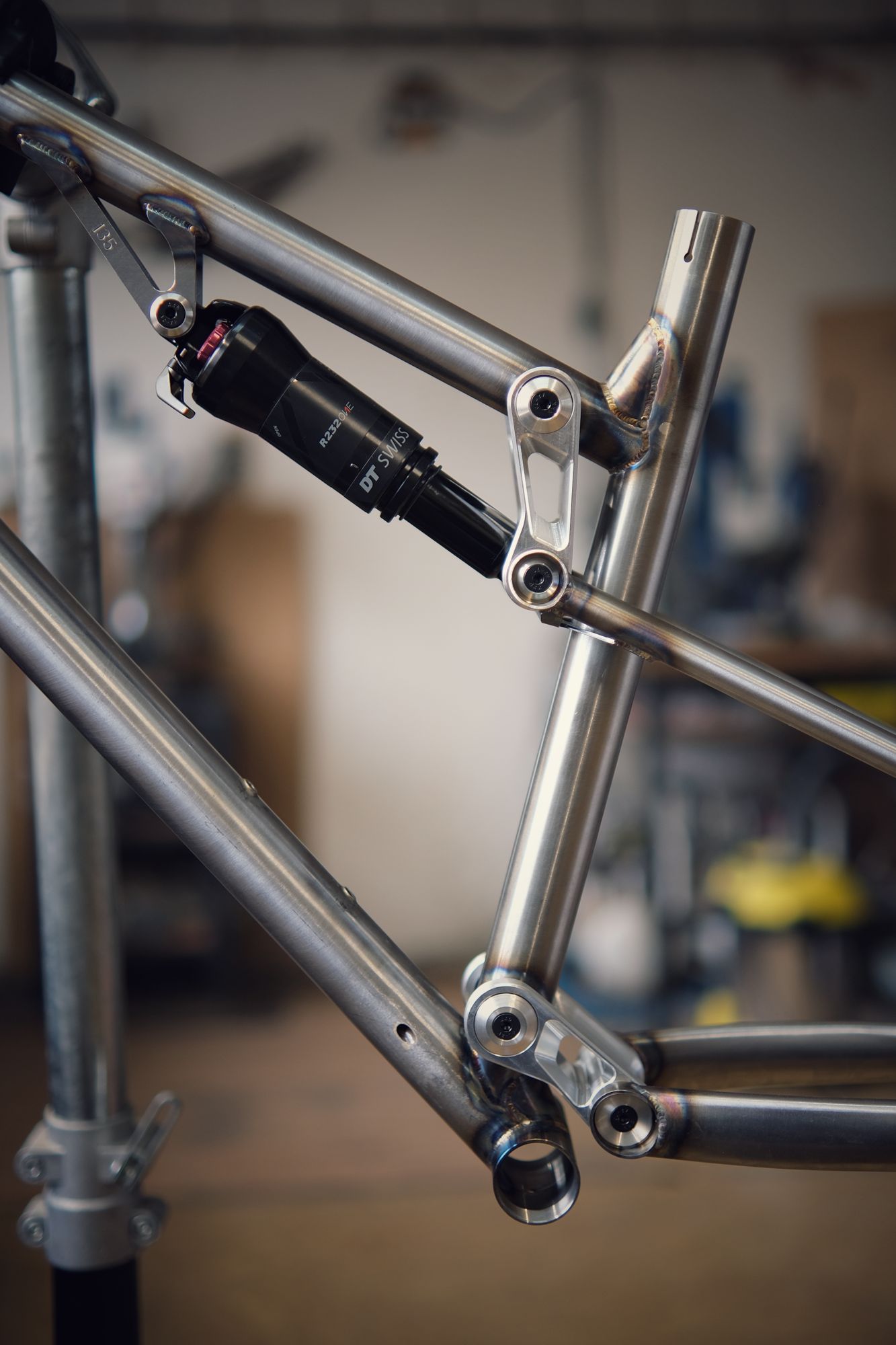

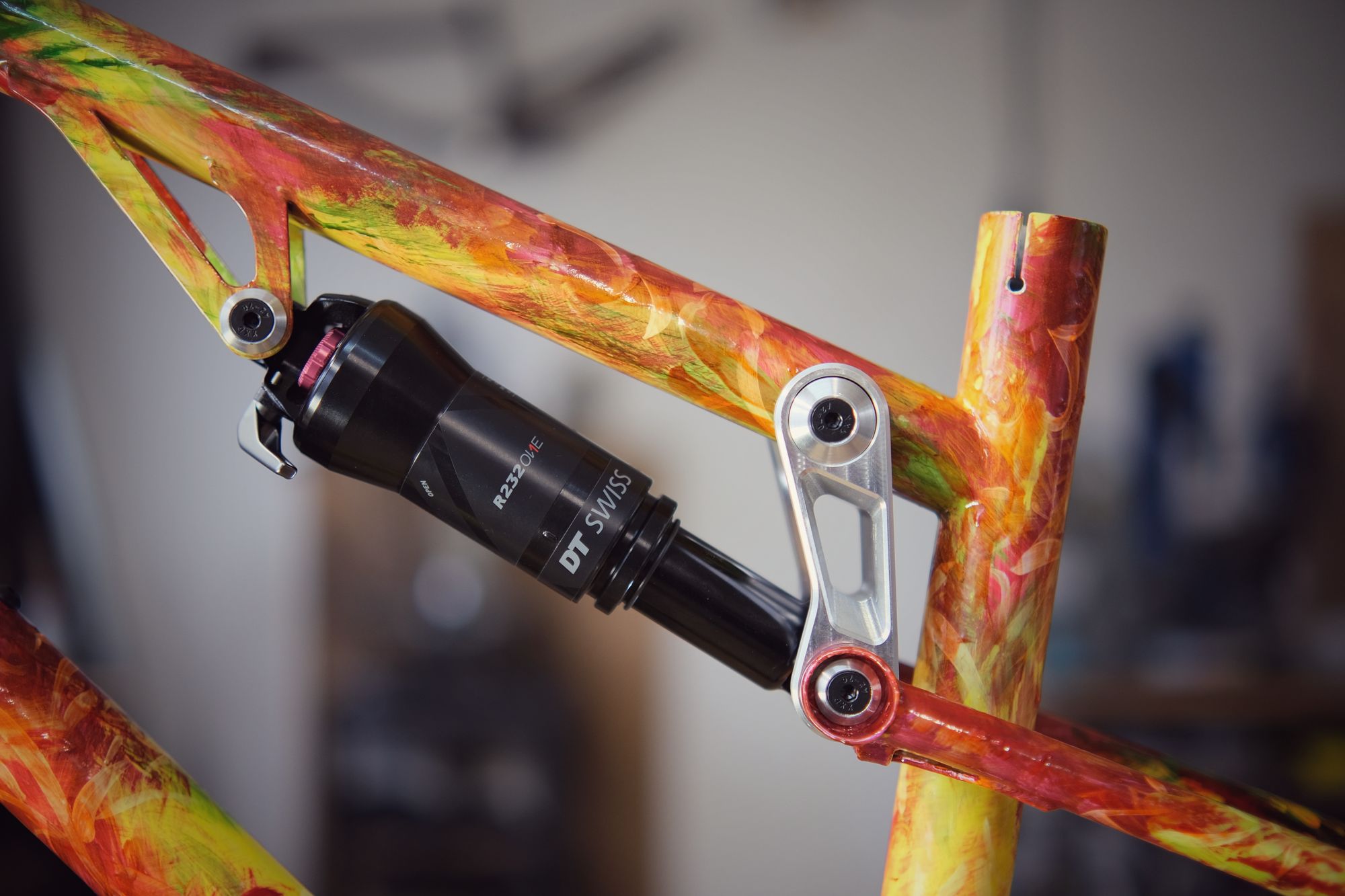

progressive virtual high-pivot suspension

Internal cable routing for the seatpost, shifter and brake that every technician dreams of. Small stainless steel tubes ensure that the Bowden cable or hose always find their way into the right hole.

two positions of chainstay for using 29" or 27.5" wheels

primary drive chain hidden inside from external influences

opener

steel comfort

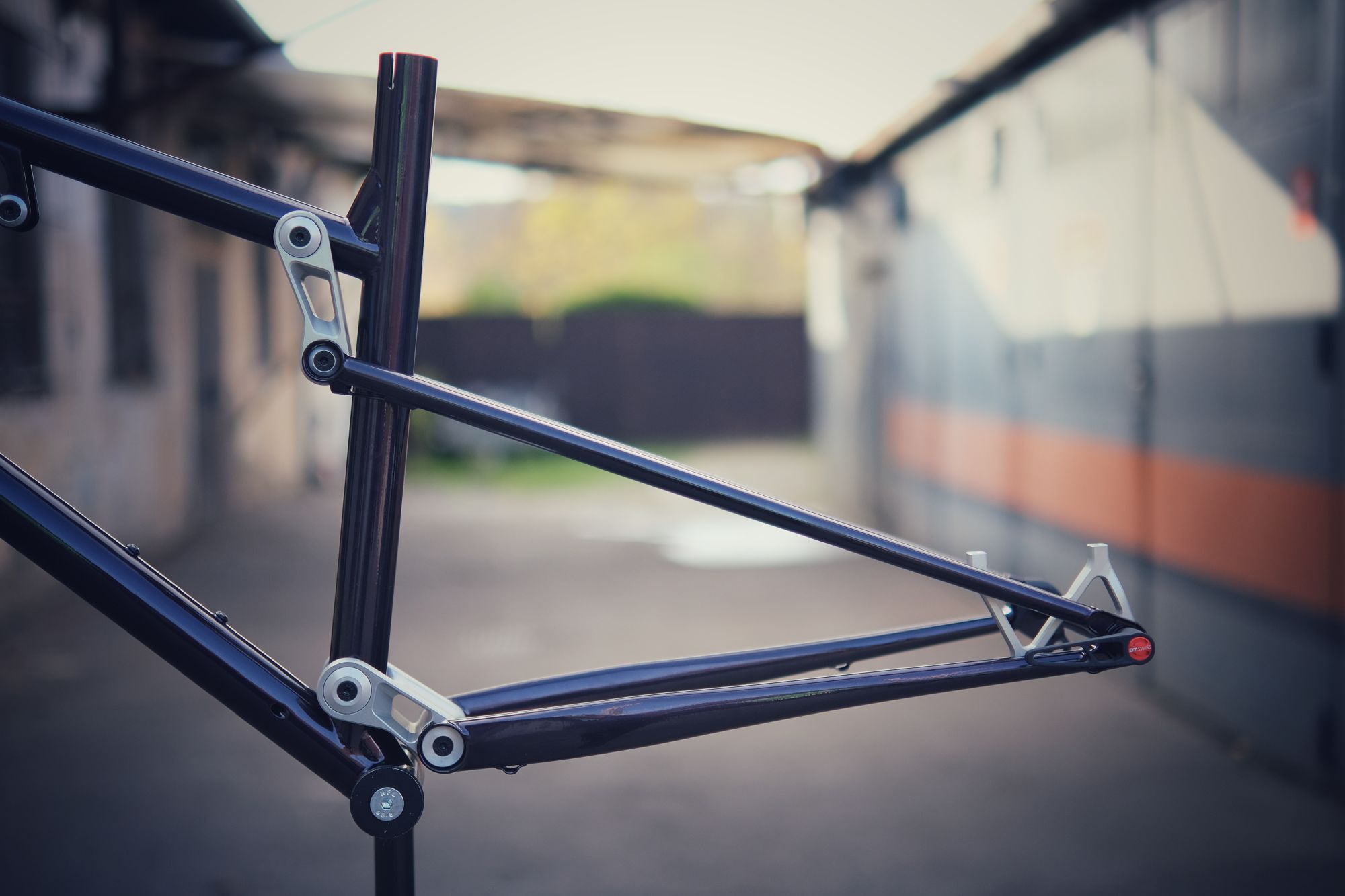

Can't you see the pivot on rear end? That's correct! Steel is flexible and allows go without pivot. It saves grams and do frame more simple.

Progressive suspension is always good and saves your ass in mountains.

The rutina is the only one that offers two bottles on downtube from Zoceli catalog.

COATINGS AND FINISHES

basic Powder coat

Clear powder coat

SPECIAL POWDER COAT

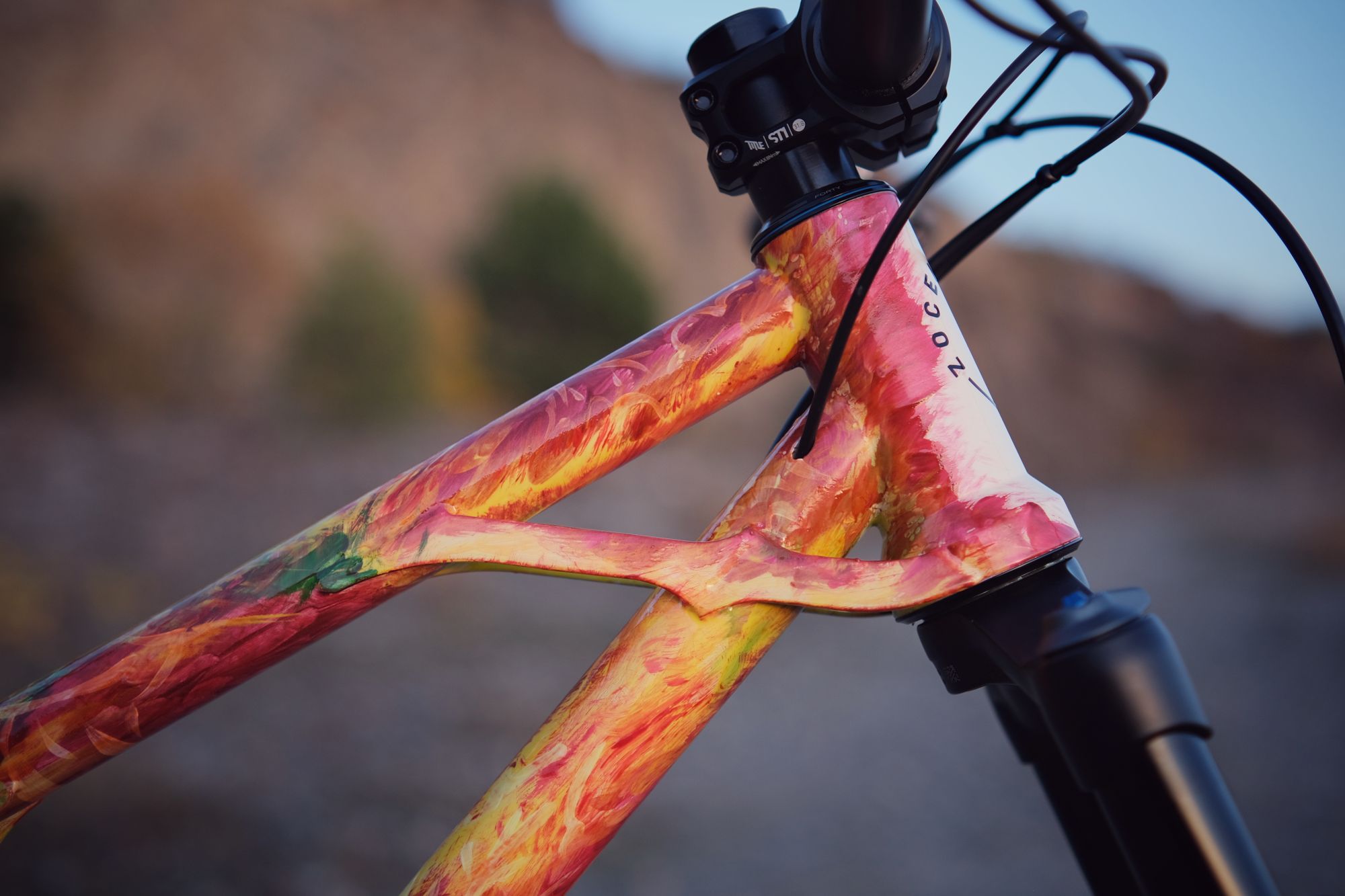

custom paint

(no extra charge)

SINGLE-COLOR POWDER COAT (glossy, matte). FIND YOUR COLOR AT PRISMATIC POWDERS.COM

(no extra charge)

allows the welding heat tint to showthrough and all the frame details remain visible. Unfortunately, sooner orlater the frame will begin to rust slightly underneath the finish - there is noway of preventing this. This slight corrosion does not affect the strength ofthe frame.

(extra charge 200 eur)

MULTI-COLOR OR SPECIAL POWDER COAT (GLOSSY, MATTE, METALLIC, CHAMELEON, STRUCTURE). FIND YOUR COLOR AT PRISMATIC POWDERS.COM

(extra charge)

IF YOU WANT A FRAME THAT NO ONE REALLY HAS, IT IS POSSIBLE TO MAKE YOUR OWN CUSTOM LOOK!

CHOOSE YOUR OWN SHADE

colour palette

Check all the photos here or on Instagram and get inspired. The color can also be specified during the order. all colors from the offer prismaticpowders.com are available.

The Zoceli frames match exceptionally well with muted pastel colours :)

Please do note that the desired shadedisplayed on your screen may not precisely match the actual colour.

available colours here!
ral
