HARD ENDURO
slopestyle
trail
enduro
steelisreal2

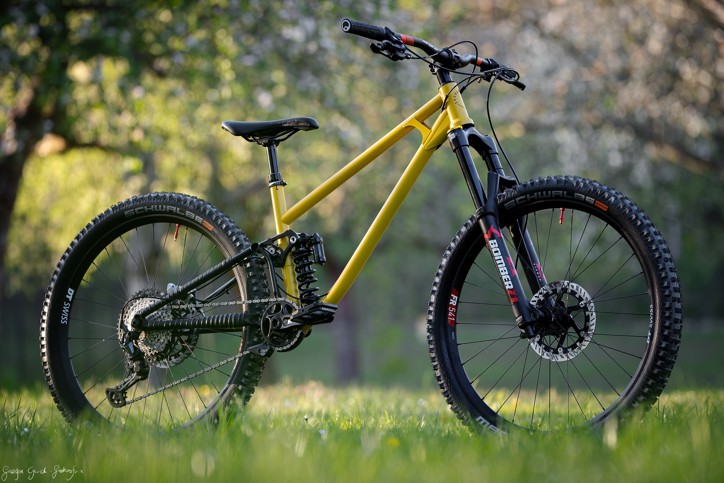

FAST, POWERFUL AND stiff, THAT'S THE NARUM. WHETHER YOU'RE RIDING THROUGH THE FOREST OR ON THE TRAIL, YOU'LL GET THE SAME FEELING AS AN ALADDIN ON HIS FLYING CARPET.

JUST FLOW
65.000 CZK / 2.600 EUR
SELECT GEOMETRY
27.5
29
mullet
I WANT TO SEE CHARTS AND NUMBERS!!
SELECT FRAME SIZE
M
L
XL
XXL
HOW TO CHOOSE THE SIZE CORRECTLY
order form
WRITE FOR MORE INFORMATION!!
tech spec
frame
crmo a columbus steel, rear travel135mm
RECOMMENDED FORK TRAVEL
140-160 mm
shock
trunnion 185x55 mm (135 mm) trunnion 185x50 mm (125 mm)
bottom BUSHING
22,2x6 mmm
headset
semi-integroated ZS44/ZS56
seatpost
30,9 mm, internal routing
seatpost clamp
34,9 mm
bottom bracket
THREADED BSA, WIDE 73MM
chainring
direct mount, max 36z
brake mount
PM 180 mm
brake rotor
max 203 mm
rear hub
boost 148x12 mm
MAX TYRE WIDTH
2,5”
Optional elements

INTERNAL OR EXTERNAL CABLE ROUTING (the frame is supplied as standard with an internal cable routing, which is made of continuous stainless steel tubes)

ADDITIONAL BOTTLE HOLDER (extra charge)

ORDERING PROCESS

EACH FRAME IS MADE TO ORDER. YOU WILL BE NOTIFIED BY EMAIL OF THE PROGRESS OF THE BUILD ANDTHE COMPLETION DATE. AFTER PLACING YOUR ORDER, YOU WILL RECEIVE AN ADVANCEPAYMENT REQUEST OF 50% OF THE FRAME PRICE, WHICH IS REQUIRED TO START THEMANUFACTURING PROCESS. THE REMAINING AMOUNT INCLUDING SHIPPING IS TO BE PAIDUPON COMPLETION OF THE FRAME.

INCLUDED IN THE PRICE

THE FRAME WITH SRAM'S UNIVERSALDERAILLEUR HANGER AND DT SWISS REAR AXLE.

NOT INCLUDED IN THE PRICE

SHIPPING AND CUSTOM FEES. PLEASE CHECK WITHYOUR COUNTRY'S CUSTOMS REGULATIONS.

DELIVERY PERIOD

THE DELIVERY DATE IS APPROXIMATELY 2-3MONTHS FROM RECEIVING THE DEPOSIT. YOU WILL BE NOTIFIED OF ANY DELAYS. THEMANUFACTURING TIME DEPENDS ON THE NUMBER OF ORDERS IN THE QUEUE.

shipping

europe:
GERMANY, austria, france, italy, belgium, switzerland, sweden, norway  Etc 50 eur

world:
usa, canada, brasil, chille australia, japan etc 100 eur

for other countries, check price on bike@zoceli.cz

WARRANTY

I STAND BEHIND MY FRAMES AND I WANTEVERYONE TO ENJOY THEIR ZOCELI FRAME FOR AS LONG AS POSSIBLE, WHICH IS WHY IOFFER A LIFETIME WARRANTY.THE LIFETIME WARRANTY COVERS ALLMANUFACTURED AND WELDED PARTS OF THE FRAME, SUCH AS THE FRONT AND REARTRIANGLES AND THE ARM ROCKERS.A LIMITED 2-YEAR WARRANTY APPLIES TOTHE PAINTWORK, REAR AXLE AND JOINING MATERIAL.

more about warranty
SELECT GEOMETRY
27.5
29
mullet
M
L
XL
XXL
(length in MM, fork travel 140MM)
1
REACH
455
475
495
515
2
Seat tube length
380
405
430
455
3
Top tube length
568
588
608
628
4
Wheelbase
1197
1217
1237
1257
5
Seatpost max insert
295
320
345
370
6
Stack
590
7
Chainstay
425
8
Head tube angle
65°
9
Seat tube angle
80°
10
Head tube length
120
11
BB Drop
15
12
BB Height
340
13
Fork offset
44
14
SHOCK
185x55 - rear travel 135mm
185x50 - rear travel 125 mm
15
Weight
(without shock and rear axle)
±3700g
M
L
XL
XXL
(length in MM, fork travel 140MM)
1
REACH
455
475
495
515
2
Seat tube length
380
405
430
455
3
Top tube length
568
588
608
628
4
Wheelbase
1215
1235
1255
1275
5
Seatpost max insert
295
320
345
370
6
Stack
626
7
Chainstay
435
8
Head tube angle
65°
9
Seat tube angle
80°
10
Head tube length
120
11
BB Drop
34
12
BB Height
340
13
Fork offset
44
14
SHOCK
185x55 - rear travel 135mm
185x50 - rear travel 125 mm
15
Weight
(without shock and rear axle)
±3700g
M
L
XL
XXL
(length in MM, fork travel 140MM)
1
REACH
455
475
495
515
2
Seat tube length
380
405
430
455
3
Top tube length
568
588
608
628
4
Wheelbase
1205
1225
1245
1265
5
Seatpost max insert
295
320
345
370
6
Stack
626
7
Chainstay
425
8
Head tube angle
65°
9
Seat tube angle
80°
10
Head tube length
120
11
BB Drop
25
12
BB Height
340
13
Fork offset
44
14
SHOCK
185x55 - rear travel 135mm
185x50 - rear travel 125 mm
15
Weight
(without shock and rear axle)
±3700g

features

cables

two short links ensure stiffness and excellent power transfer from the pedals to the rear wheel.

opener

strength

THE COMBINATION OF A RIGID REAR TRIANGLE ANDSHORT LINKS PROVIDES OPTIMUM STIFFNESS AND ALSOHELPS TO IMPROVE HANDLING ON THE GROUND.COMFORT IS TAKEN CARE OF BY A VERY WELL WORKINGSUSPENSION THAT WILL SUIT YOU WHEREVER YOU RIDE.

COATINGS AND FINISHES

basic Powder coat

Clear powder coat

SPECIAL POWDER COAT

custom paint

(no extra charge)

SINGLE-COLOR POWDER COAT (glossy, matte). FIND YOUR COLOR AT PRISMATIC POWDERS.COM

(no extra charge)

allows the welding heat tint to showthrough and all the frame details remain visible. Unfortunately, sooner orlater the frame will begin to rust slightly underneath the finish - there is noway of preventing this. This slight corrosion does not affect the strength ofthe frame.

(extra charge 200 eur)

MULTI-COLOR OR SPECIAL POWDER COAT (GLOSSY, MATTE, METALLIC, CHAMELEON, STRUCTURE). FIND YOUR COLOR AT PRISMATIC POWDERS.COM

(extra charge)

IF YOU WANT A FRAME THAT NO ONE REALLY HAS, IT IS POSSIBLE TO MAKE YOUR OWN CUSTOM LOOK!

CHOOSE YOUR OWN SHADE

colour palette

Check all the photos here or on Instagram and get inspired. The color can also be specified during the order. all colors from the offer prismaticpowders.com are available.

The Zoceli frames match exceptionally well with muted pastel colours :)

Please do note that the desired shadedisplayed on your screen may not precisely match the actual colour.

available colours here!
